IOT Solutions | WIFI SD Card | Kcard

KCard I is a standard SD form factor card with plug-in socket of T-Flash card by integrating Key ASIC’s ultra compact SPG101 SoC, to provide extreme flexibility of downloading photos, audios and videos from camera/camcorder to mobile devices via WiFi network. After media files were downloaded to mobile devices such as smartphone or communication tablet, user will be able to share it out easily.

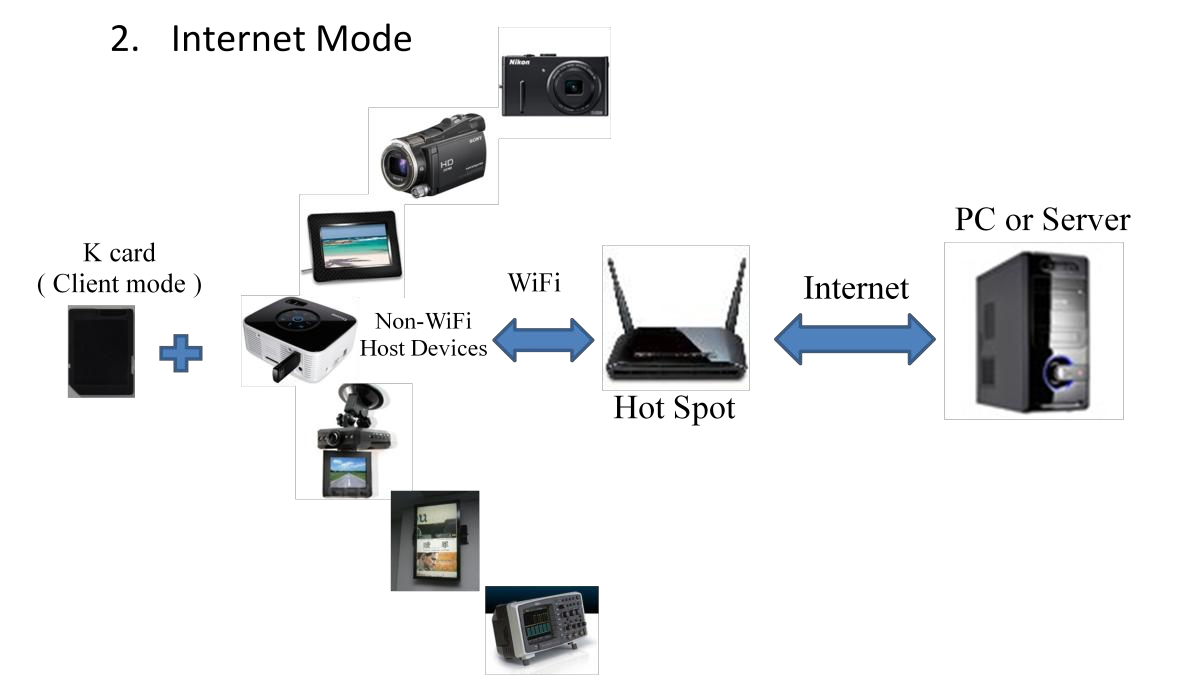

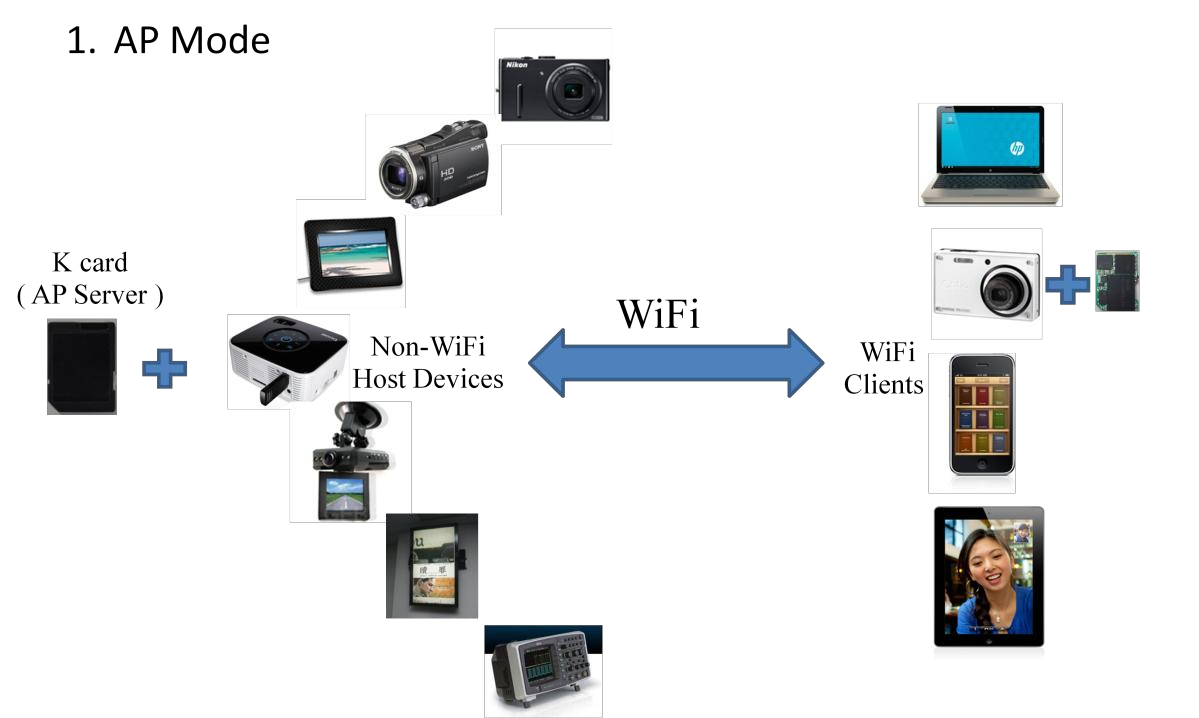

User can download media files saved in KCard I with two ways:







KCard I Specification

  KA Kcard I
Capacity Optional or Bundled TF card, Up to 32GB
SD Interface SD memory Card Physical Layer Version 2.00
Wireless Interface 802.11b/g Wi-Fi technology
Wireless Security WEP 64/128, WPA,WPA2
Wireless Range

Camera to Wi-Fi Devices: -10 meter
(Note: Wireless range varies with camera body design.)
Dimension/ Weight:

32mm (L) x 24mm (W) x 2.1mm (H) / 4g
(Compliant with SD memory Card Physical Layer Version 2.00)
Antenna: Built-in PCB antenna
SD performance Up to TF card
Wireless performance Max connection rate: 65 Mbps
Data transfer speed:

2MB, Orbit tool, 96-96-96MHz
(*Note: Data transfer speed varies with camera body design and distance
between the devices.)

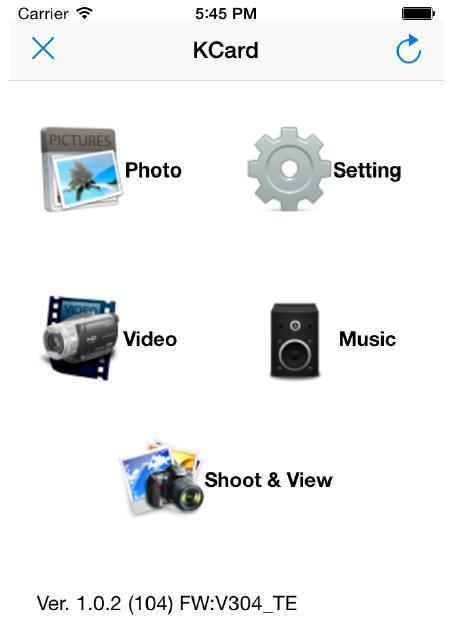

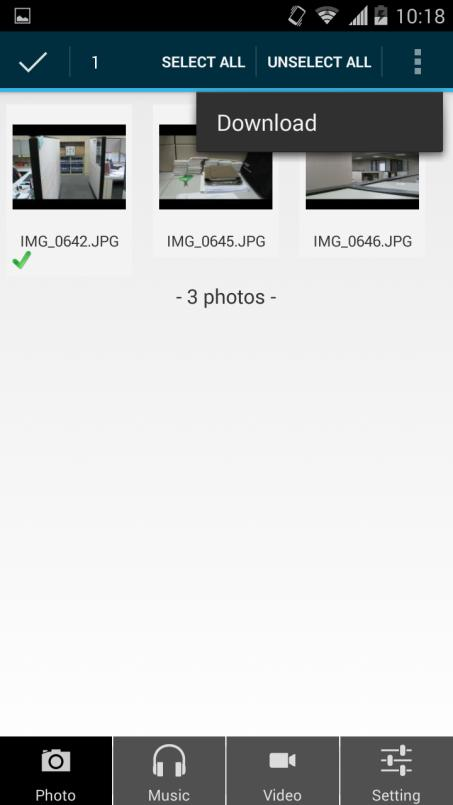

State of Art APP for Android & iOS:

KCard I APP( Android & iOS ) :



Android App iOS App



Kcard iOS APP QR code
Kcard iOS APP QR code Kcard Android APP QR code
