IOT Solutions | WIFI USB Drive | Mdrive

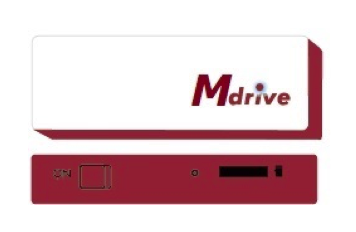

KEY ASIC’s Mdrive, also called Wi-Fi IoT module system with USB interface, will upgrade all devices with USB 2.0 slot to smart IoT products by bring in low power Wi-Fi connectivity to those devices.

Wi-Fi Connection Mode

• Point to point mode, not requires internet network
• Internet mode to access cloud data

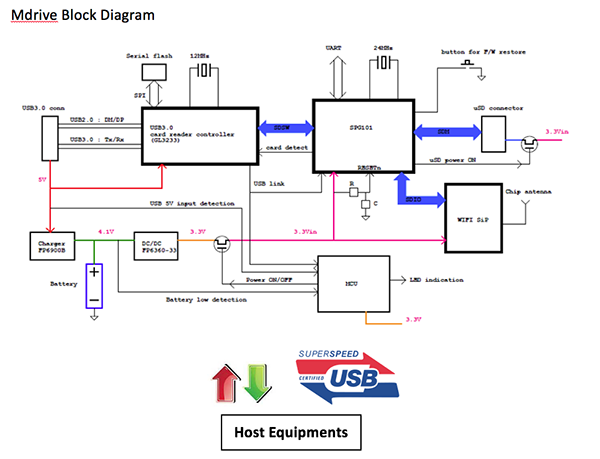

• Mdrive is an Embedded Linux Computer with USB2.0 interface, Wi-Fi and microSD Slot

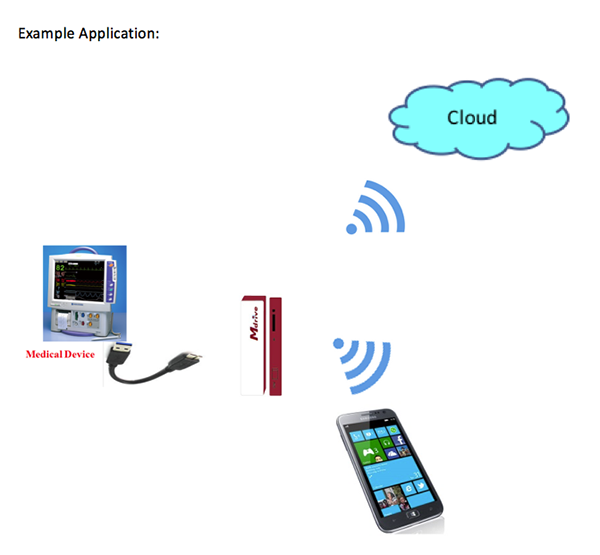

• Insert Mdrive into devices will convert devices into Wi-Fi IoT and be able to connect to the Cloud directly via Wi-Fi
• Files are transmitted from IOT devices to Mdrive then to the Cloud and vice versa

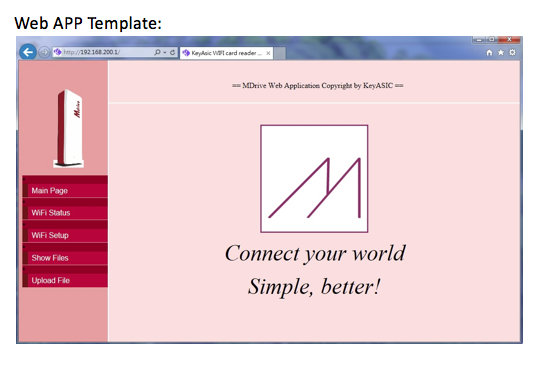

• APP on Android or iOS controls and communicates with Mdrive directly
